Purpose
This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources(linpin).

Chamber Structure
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution(linpin).

Control System
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts(linpin) the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternatingly and circularly.
Standards Applied
GB/T14522-93  GB/T16422.3-1997  GB/T16585-96

Specs & Technical Parameters

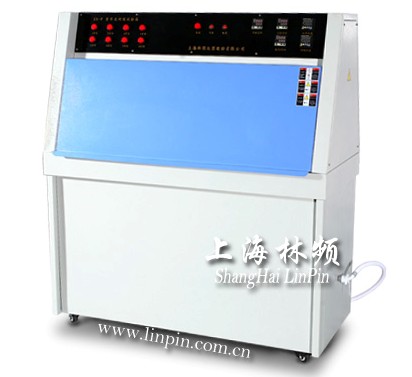

Model  ZN-P
Workroom Dimensions (cm) 45*117*50
Exterior Dimensions (cm) 58*128*135

Power  4.0(KW)
Temperature Range
RT+10℃~70℃
Humidity Range  ≥95％R.H
Lamp Spacing 35mm

Distance between Sample and Lamp  50mm
Quantity of Samples Supported
150mm (L) × 75mm (W), about 40 pcs

UV Wavelength  290nm~400nm UV-A, UV-B, UV-C (Subject to the specifications in order)

Lamp Power
40W
