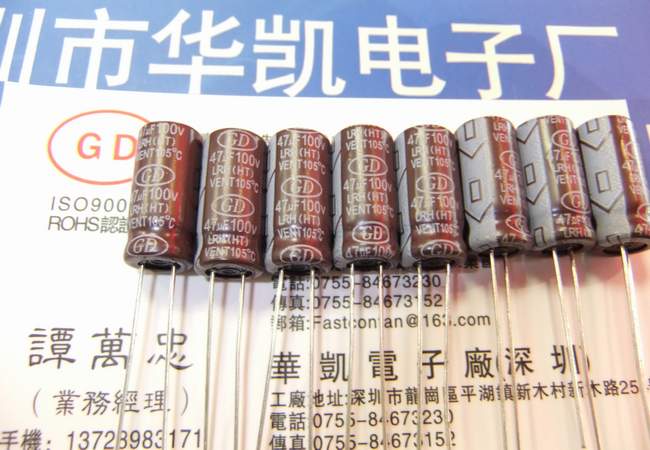

长寿命高频低阻抗电解电容器LRH(HT)47UF100V 8x16

点击查看原图
公司名称:深圳市华凯兴业电子有限公司
所属类别:电源配套分类>>电解电容
电子信箱:2751819141@qq.com
联系电话:1372898371
联 系 人:谭万忠
更新时间:2024/3/28 16:46:04

产品详情



高频低阻抗电解电容器LRH(HT)47UF100V 8x16LRH series 高頻率低阻抗品
1. 高頻率低阻抗,壽命3000~5000小時,1050C
Low impedance for high frequency , Life time:3000 ~5000hours at 1050C
2. 適用於電腦主機板,高保真音箱,高分辨數碼彩電等電子線路中
Used in main board , hi-fi acoustics ,numeral color-TV circuits etc.
Specifications
No. Item Performance
1 使用溫度範圍
Operating Temperature Range -40 to +1050C -25 to +1050C
2 定格電壓範圍
Rated Working Voltage Range 6.3-100V.DC 160~450V.DC
3 靜電容量範圍
Capacitance Tolerance 0.47-15000µF 0.47-470µF
4 靜電容量容許差
Capacitance Tolerance ±20%(at+20 0C,120Hz)
5 洩漏電流
Leakage Current I ≤0.01CV or3(µA) after three minutes
Application of rated working voltage +20℃ I ≤0.03CV after three minutes
Application of rated working voltage +20℃
6 損失角
Dissipation Factor(tanδ)
(120Hz\+20℃)
Working Voltage(V) 6.3 10 16 25 35 50 63 100 160~250 350,400 450
tanδ max. 0.18 0.16 0.14 0.12 0.10 0.09 0.08 0.08 0.12 0.15 0.17
For capacitance value >1000µF, add 0.02 per another 1000µF
7 低溫度特性(at 120 Hz)
Characteristics at low temperature (Impedance ratio at 120Hz)
Working Voltage(V) (V) 6.3 10 16 25~50 63,100 160 200 250 350 400 450
Z-25℃/+20℃ 4 3 3 3 2 2 2 3 5 5 6
Z-40/℃+20℃ 8 6 4 3 3 3 6 6 6 6 -

8 高溫負荷特性
High Temperature Loading Application of DC rated working voltage at +105℃,
The capacitor shall meet the following limits:
Post test requirements at + 20℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±25% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

9 高溫無負荷特性
Shelf Life After 1000hrs. Application of DC no rated working voltage at +105℃,The capacitor shall meet the following limits: Post test requirements at + 20℃
Leakage current ≤200% of initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

高频低阻抗电解电容器LRH(HT)47UF100V 8x15
