CSB电池HRL系列

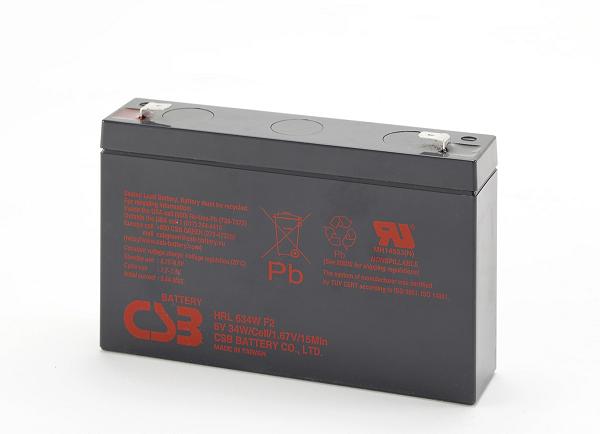

HRL634W
6V 34w/cell
HRL 634W F2FR is specially designed for high efficient discharge and long life.application.It can be used for more than 260 cycles at 100% discharge in cycle service, up to 8 years in standby service.

規格書
局數 3
電壓值 6 V
安培數 34W @ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F)
重量(kg)  Approx. 1.32kg(2.91 lbs)
最大放電電流5秒(A)  130A (5 Sec)
內阻(mΩ)  Approx. 10 mΩ
溫度工作範圍  Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用溫度工作範圍  25°C±3°C(77°F±5°F)
浮充使用充電條件  6.75 to 6.9 VDC/Unit Average at 25°C(77°F)
安培數/只  3.4A
循環壽命測試條件  7.2 to 7.5 VDC/Unit Average at 25°C(77°F)
單一放電條件  CSB Batteries can be stored for more than 6 months at 25°C(77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子  F2-Faston Tab250
電槽組材質  ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88367) can be available upon request.
