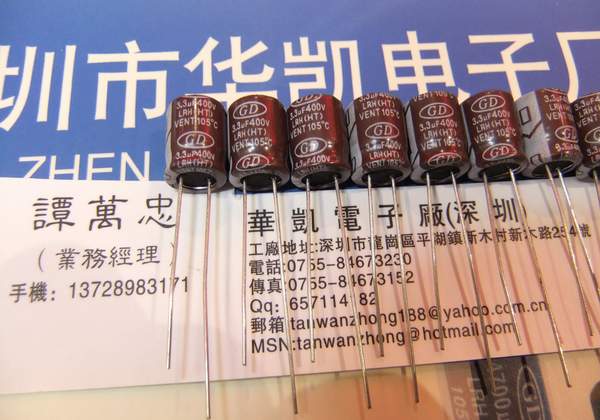

铝电解电容器LRH(HT)3.3UF400V 8X9

点击查看原图
公司名称:深圳市龙岗区平湖新木华凯电子厂
所属类别:电源配套分类>>电子元件
电子信箱:GD_huakai_tan@163.com
联系电话:0755-84673230
联 系 人:谭万忠
更新时间:2013-12-16 10:47:29

产品详情



LRH  series 高頻率低阻抗品

1.  高頻率低阻抗,壽命3000~5000小時,1050C

Low impedance for high frequency , Life time:3000 ~5000hours at 1050C

2.  適用於電腦主機板,高保真音箱,高分辨數碼彩電等電子線路中

Used in main board , hi-fi acoustics ,numeral color-TV circuits etc.铝电解电容器LRH(HT)3.3UF400V 8X9

 Specifications

No.

Item

Performance

1

使用溫度範圍

Operating Temperature Range

-40 to +1050C

-25 to +1050C

2

定格電壓範圍

Rated Working Voltage Range

6.3-100V.DC

160~450V.DC

3

靜電容量範圍

Capacitance Tolerance

0.47-15000µF

0.47-470µF

4

靜電容量容許差

Capacitance Tolerance

±20%(at+20 0C,120Hz)

5

洩漏電流

Leakage Current

I 0.01CV or3(µA) after three minutes

Application of rated working voltage +20

I 0.03CV after three minutes

Application of rated working voltage +20

6

損失角

Dissipation Factor(tanδ)

120Hz\+20



Working VoltageV

6.3

10

16

25

35

50

63

100

160~250

350,400

450

tanδ     max.

0.18

0.16

0.14

0.12

0.10

0.09

0.08

0.08

0.12

0.15

0.17

For capacitance value 1000µF, add 0.02 per another 1000µF

7

溫度特性(at  120  Hz

Characteristics at low temperature Impedance ratio at 120Hz

Working VoltageV (V)

6.3

10

16

25~50

63,100

160

200

250

350

400

450

Z-25℃/+20

4

3

3

3

2

2

2

3

5

5

6

Z-40/℃+20

8

6

4

3

3

3

6

6

6

6

-

8

高溫負荷特性

High Temperature  Loading

DØ

10Ø

Life hours

3000

5000

Application of DC rated working voltage at +105,

The capacitor shall meet the following limits:

Post test requirements at + 20

Leakage current

the Initial specified value

Capacitance change

±25% of initial measured value

Dissipation Factor(tanδ)

200% of initial specified value

9

高溫無負荷特性

Shelf Life

After 1000hrs. Application of DC no rated working voltage at +105,The capacitor shall meet the following limits: Post test requirements at + 20

Leakage current

200% of initial specified value

Capacitance change

±20% of initial measured value

Dissipation Factor(tanδ)

200% of initial specified value

Multiplier for ripple current紋波電流補正係數

Frequency Coefficient 周波數係數

μF            µF          Frequency

6050Hz

120 Hz

400Hz

1K Hz

10K Hz

50~100K Hz

CAP10

0.47

0.59

0.76

0.85

0.97

1.00

10<CAP100

0.52

0.62

0.80

0.89

0.97

1.00

100<CAP1000

0.58

0.72

0.84

0.90

0.98

1.00

1000<CAP

0.63

0.78

0.87

0.91

0.98

1.00

Temperature Coefficient周圍溫度係數

Coefficient                   temperature

105

85

65

coefficient

1.0

1.7

2.1
