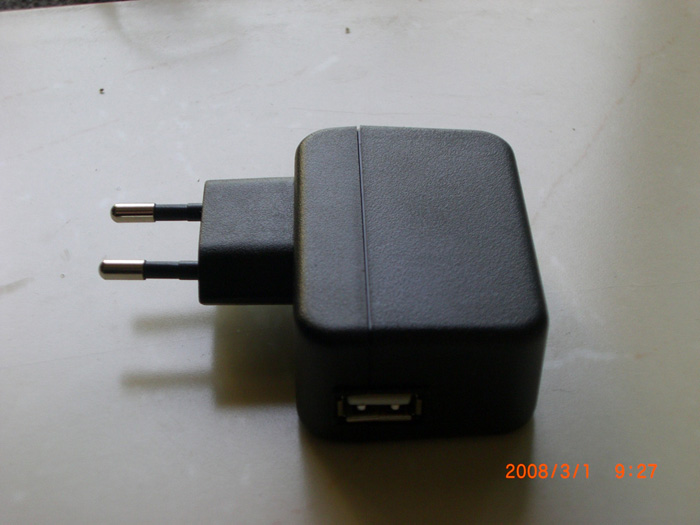

5W Series DSC-4WU
Universal Input A dapter Switching Power Supply
Features
*Meet CEC Low Power Consumption
*Class B EMI ＜250ua Leakage
Applications
*Computer *Communication *Consumer
Safety Approvals(60950)
*CCC *GS *UL
Output Specifications
x=represents the input voltage range 4.5-8.1V
y=US/EU/UK/AU/KA/CH…(US means US-plug used,EU means EU-plug used,UKmeans…)
ccc=3 digit number which represents the output voltage
ddd=3 digit number which represents the output current
|
MODEL |
INPUT Voltage |
OUTPUT | ||||
|
Range |
Frequancy |
Vdc |
Reg. |
A(max) |
W(max) | |
|
DSC-5WU-05 XYccc ddd |
200-240V |
50/60Hz0.2A |
4.5-8.1V |
±15% |
1.0 |
5.0 |
|
DSC-5WU-05XYccc ddd |
100-240V |
50/60Hz0.2A |
4.5-8.1V |
±18% |
1.0 |
5.0 |
|
|
|
|
|
|
|
|
DSC-5WU Characteristics
AC Input Voltage Operation Temperature
90 to 264 VAC 0 to 40℃
AC Input Frequancy: Storage Temperature
47 to 63 Hz -20 to +60℃
AC Input Current(Full Load) MTBF
0.2Arms(120VAC) 50000-100000 by option
0.2Arms(240VAC) (80%max load,Nominal voltage,25℃)
Leakage Current Emissions
Less than 250Μa,(Nominal voltage) FCC Class B
Dielectric Withstand(Hi-pot) EN 55022 B
3000VAC,1 min,10mA
Hold-up Time(Full Load) Immunity
5ms 120VAC 61000-4-2,Level 3
5ms 240VAC 61000-4-3,Level 2
Over current Protection 61000-4-4,Level 2
Short Circuit,Auto Restart 61000-4-5,Level 3
61000-4-6,Level 2
61000-4-11
