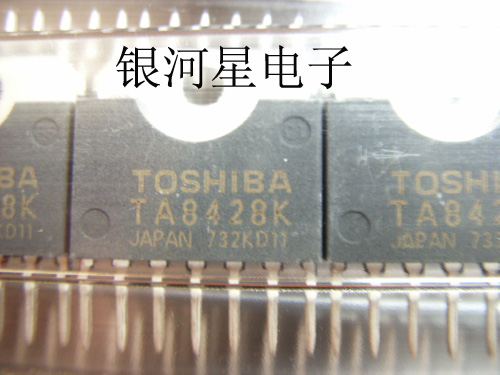

直流电机驱动IC TA8428K
型号:TA8428K(S)/TA8428F
品牌：TOSHIBA
批号：07+ROHS
封装：7-PIN SIP / HSOP-20
技术资料：欢迎来电索取~`
FULL BRIDGE DRIVER
The TA8428K (S), TA8428F is Full Bridge Driver IC for Brush
Motor Rotation Control.
Forward Rotation, Reverse Rotation, Stop and Braking operations
are available.
Thermal Shutdown and Short Current Protector are provided.
FEATURES
Output Current : TA8428K (S) 1.5 A (AVE.), 3.0 A (PEAK)
TA8428F 0.8 A (AVE.), 2.4 A (PEAK)
4 modes (forward / reverse / short brake and stop) are
available with 2 TTL compatible i…
